PM HMI FTP Server (伺服端) 設定
FTP (File Transfer Protocol) 是透過網路在Clinet與Server之間進行資料傳輸通訊協定。
以下範例HMI當FTP Server時,如何設定,並由PC上位端(Client)方式讀取資料。

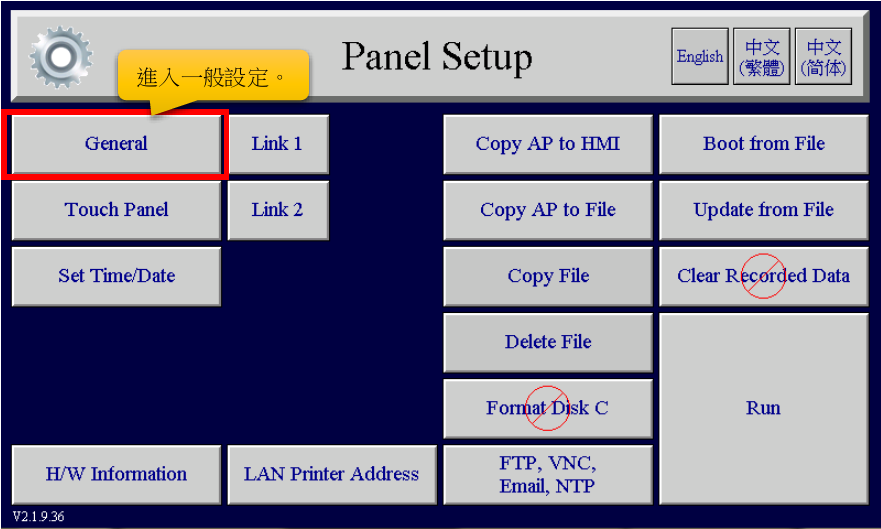

1. 進入人機PanelSetup,在一般設定中輸入IP位址、子網路遮罩、網關
如下圖 IP:192.168.1.130、乙網路遮罩:255.255.255.0、網關:192.168.1.1
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server1.PNG)
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server2.PNG)
2.設定人機FTP。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server3.PNG)

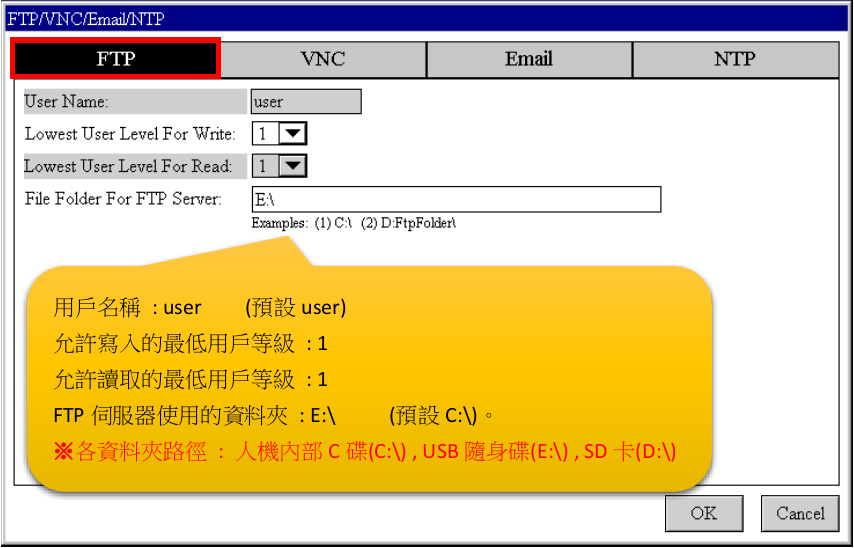

FTP使用資料夾可使用人機內部C碟、USB隨身碟、SD卡。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server4.PNG)

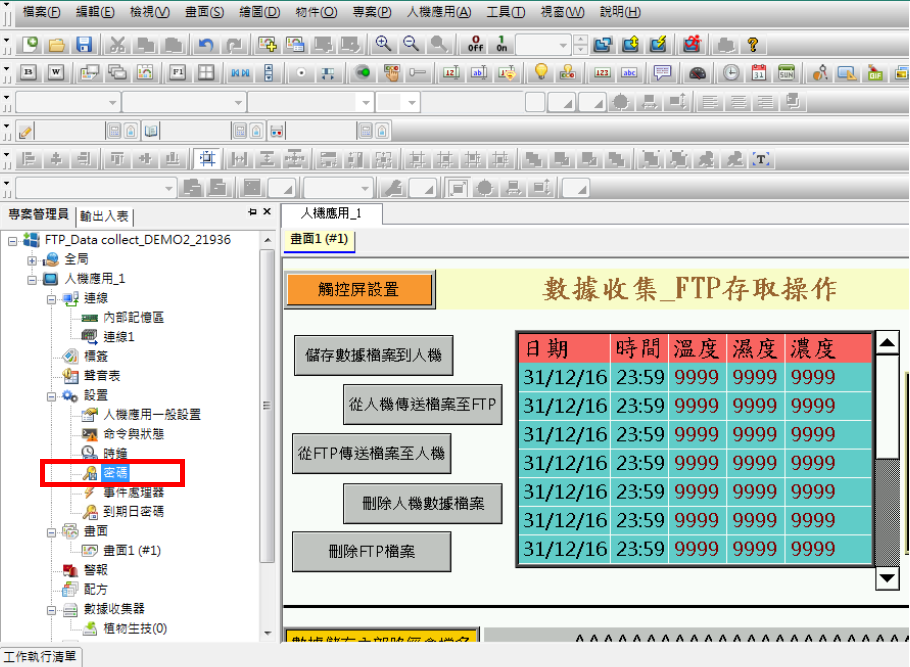

提示:允許寫入/讀取最低用戶等級,可在PM Designer專案中,密碼內設定。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server5.PNG)
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server6.PNG)

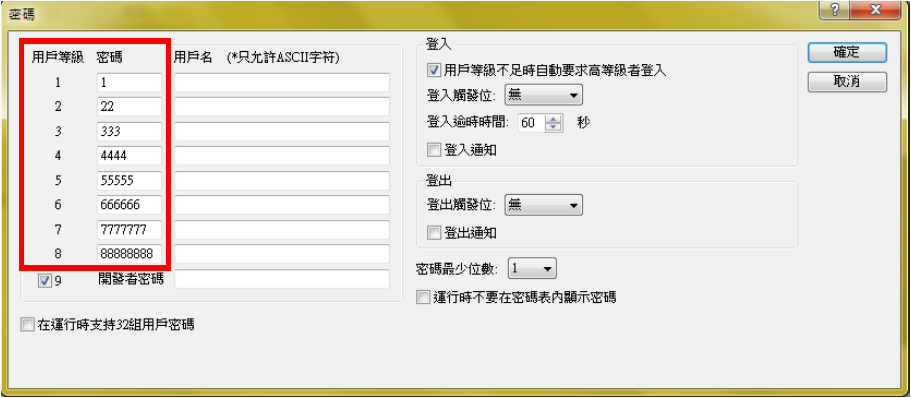

注意:編輯完密碼,下載PM Designer至HMI,進入AP後設定才會生效。
-
如何從PC端(Client)進入HMI FTP(Server)
1.可由電腦檔案總管進入HMI Server。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server7.PNG)

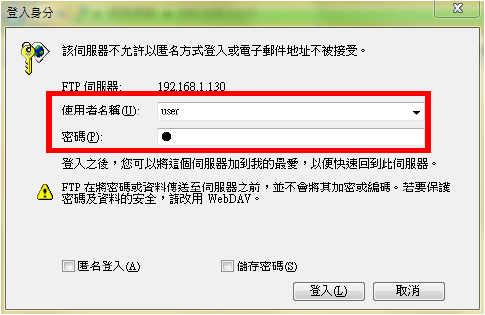

輸入所設定的 ”使用者名稱” 及可讀寫用戶等級的 "密碼"。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server8.PNG)
登入後,可在檔案總管可拉取HMI FTP Server資料。
![](/downloads/image/HMI_Q&A/PM_FTP_Server/PM_FTP_Server9.PNG)
